Vulcan

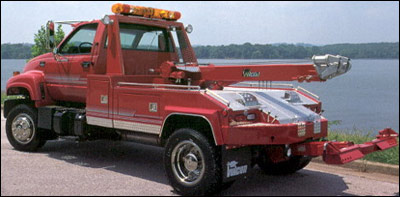

Models 892/894

Light Duty Versatility, Medium Duty Performance

In today's competitive business environment, versatility is a key ingredient to your success.  The Vulcan 892 and 894 are designed to meet that challenge with the ability to tow a wide variety of vehicles including autos, motorhomes, light trucks and vans.  The wheel lift has the ability to lift 6,000 lbs., for heavier loads the underlift is capable of lifting up to 6,500 lbs. at full extension using the standard lift forks.
Separate boom and underlift controls for easy and safe operation, an increased crossbar bearing surface for longer life and reliability along with Vulcan's patented strapless wheel lift system are just a few of the numerous features that distinguish Vulcan as the leader in customer loyalty and satisfaction for towing and recovery equipment.  Call your local Vulcan distributor to find out more about how the Vulcan 892 or 894 can increase your profitability.


Back to Top




VULCAN MODELS 892 / 894 - STANDARD FEATURES

Vulcan's patented 6,000 lb. wheel retainer
wheel lift system

Dual wheel lift control stations located at the
tail board

20,000 lb. boom retracted

Hydraulic pump

60" Cab to Axle steel body

Free spool handles

Body width 90"

Dual boom control stations located on deck

2" steel fenderettes

Wheel lift safety chains

Safety chain guards

Tail board chain pockets for safety chains

Independent wheel lift tilt

Wheel retainer storage pockets built into body

Mud flaps

Conventional sling support brackets

FMVSS lighting

Drivers and Passenger side tool compartments

Cable tensioners

1 set of 3" low profile frame forks and holders

Back to Top


VULCAN MODELS 892 / 894 - DESCRIPTION



            892

             894

Boom:   Retracted
             Extended at 34° (TEMA)
             Maximum lift angle
             Maximum boom height
             Reach past Tailboard lowered

        20,000 lbs.
        5,000 lbs.
        37°
        13'
        76"

        20,000 lbs.
        5,000 lbs.
        37°
        13'
        76"

Winch:  Winch (Worm Gear)
Cable:    Per winch

        8,000 lbs.
        3/8" x 100'

        10,000 lbs.
        7/16" x 100'

Cab to Axle (clear) Min. (Standard body)
                              Max. (with spacer boxes)
Suggested chassis                  GVWR

        60"
        108"
        18,000 lbs.

        60"
        108"
        18,000 lbs.

Underlift:
                  Lift capacity extended with forks
                  Lift capacity extended on wheel lift
                  Tilt capacity fully extended with forks
                  Maximum reach to center of forks
                  Tow Rating


        6,500 lbs.
        6,000 lbs.
        6,500 lbs.
        65"
        20,000 lbs.


        6,500 lbs.
        6,000 lbs.
        6,500 lbs.
        65"
        20,000 lbs.

Back to Top


VULCAN MODELS 892 / 894 - OPTIONAL EQUIPMENT

Emergency lighting

Spacer tool boxes

Dress up packages

Sling

Trailer hitch

P.T.O.

3" or 4" Fenderettes

Light pylons

Wheel simulators

Other lifting attachments



Many other popular Vulcan options


Note:  Ratings are based on structural factors only--not chassis capacity.  Vulcan reserves the right, without
                  notice and without obligation, to improve or modify products, which may change the specifications,
                  models and feature availability.  Maximum tire size is 245/70 R19.5.
