Vulcan

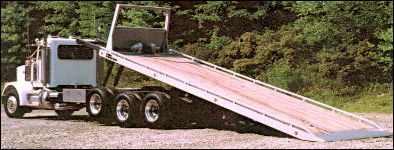

Model 30 Industrial Carrier

VULCAN SERIES 30 INDUSTRIAL CARRIERS - STANDARD FEATURES
Full length subframe	Mud flaps
Fixed position stabilizer	Illuminated dual controls
Federal standard 108 shock mounted lighting	Four side marker lights
Water resistant junction box for wire harness connection	Body lock
Body - 1/4 smooth floor plate (steel floor) - 5 x 2 structural tube crossmembers on 8" centers - Floor level sides with stake pockets - Heavy duty approach plate with 4 chain locks	Lubrication fittings on all pivot points

VULCAN SERIES 30 INDUSTRIAL CARRIERS - OPTIONAL EQUIPMENT
3/16 or 1/4 diamond tread floor	Hydraulic rear stabilizer
5/4 Apitong (wood floor)	8 cu. ft. water resistant aluminum tool box
Steel floor overlay on wood (not recommended)	4 cu. ft. aluminum tool box with shelf
Additional chain locks	Factory installation
20,000 lb. hydraulic winch with 5/8 x 100 ft. cable	Bi-directional shaft-driven pump - 28 or 18 GPM
30,000 lb. hydraulic winch with 11/16 x 100 ft. cable	Direct mount pump/PTO
NOTE: Some option selections may not be compatible in certain configurations.

Back to Top

VULCAN SERIES 30 INDUSTRIAL CARRIERS - SPECIFICATIONS
Body Width Body Extension	96 O.D. x 102 O.D. 120"
Control Valve Oil Reservoir Oil Filter Pump	Sectional, 20 GPM, 2000 PSI 26 gallons 250 PSI, 30 GPM, 10 Microns 18 or 28 GPM
Body Rating * Minimum Load Angle **	30,000 lbs. evenly distributed 14° at 42" frame height
* Load ratings are based on structural factors - not chassis capability ** Load angle varies with frame height and carrier length. Lower frames and longer carriers will produce lower load angles.

Back to Top

VULCAN SERIES 30 INDUSTRIAL CARRIERS - ACCESSORIES
Bar light	Work lights	Switch panel
Hydraulic throttle	Wire control throttle	J-hook chains
Front hookup chain

VULCAN SERIES 30 INDUSTRIAL CARRIERS - CHASSIS RECOMMENDATIONS
Minimum GVWR - 50,000 lbs. *	Accessible PTO opening
Maximum frame height - 44"	Minimum frame RBM each rail - 3,000,000 in. · lbs.
CARRIER LENGTH	USABLE CAB-TO-BOGIE WITHOUT CAB CARRIER
23 24 25 26 27 28	138 - 144 144 - 158 156 - 168 168 - 180 180 - 190 190 - 196

Back to Top

Note: Vulcan reserves the right, without notice and without obligation, to improve or modify products, which may change the specifications, models and feature availability.
