Century Wreckers

Model 211

WE'VE EXTENDED OUR REACH!

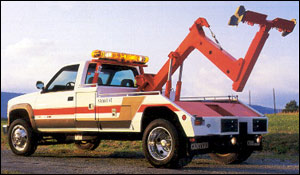

Century's 211 integrated boom-wheel lift Towing and Recovery Vehicle will increase your company's bottom line.

The 211 combines affordability with features that far surpass the competition. A wheel lift that folds into storage position for increased maneuverability and a hook-up system that incorporates lightweight pivoting L-arms are just a few of the many features that put the 211 first in its class.

CENTURY'S MODEL 211 BOOM
TOWING WILL NEVER BE THE SAME!

Note: Some optional equipment may be shown. Other Century Towing and Recovery Equipment is available from your local Century Distributor.

Back to Top

CENTURY MODEL 211 - STANDARD FEATURES

Lightweight Pivot L-Arm System

Dual Controls

Safety Chains in Rear Pockets

Mud Flaps

Tool Compartments, Right & Left Side

Back Up Alarm

Variable Speed Hydraulic Winch

Power Fold for Stinger Storage

6x19 Hemp Center IPS 3/8" x 75' Wire Rope

Cross Bar Sheave Attachment

86" Wide Heavy Duty Body with 8" Sills

All Components for Complete Installation

Federal Standard 108 Light Group

Lubrication Fittings on all Shafts and Other Moving Parts

Wiring Harness with Junction Box

Preassembled and Tested

Back to Top

CENTURY MODEL 211 - OPTIONAL EQUIPMENT

PTO/Pump Combination

Wrecker Special Light Bar

Switch Panel

Work Lights

Convenience Group

Front Push Bumper

Trailer Ball Adapter

24" Tunnel Tool Compartment for 84" C.A.

Light Pylon

Cable Anti-Spooling Tensioner

Many other popular Century Options

Back to Top

CENTURY MODEL 211 - SPECIFICATIONS

8-ton Recovery Boom (rated at boom swivel) with 8000 lb. hydraulic winch, 86" wide heavy duty body 60" C.A.

BOOM
Using cross bar sheave attachment

RETRACTED

EXTENDED

Lift Height from ground to hook at max. Boom elevation

Reach past tailgate at max. Boom elevation

68"

34"

81"

63"

Range of Elevation

0 - 40°

Boom Rating at Boom Swivel

16,000 lbs.

Boom Rating at Crossbar Sheave Attachment

4,000 lbs.

WINCHES

Rating (first layer of drum)

8,000 lbs.

CABLE

Diameter and length (each drum)
Type
Working line limit

3/8" Dia. x 75'
6 x 19 hemp center, IPS
3,500 lb.

WHEEL LIFT

POSITION

INCHES

Retracted Distance From Tailgate

At Full Down
At Normal Tow Position

29 3/4
34

Extended Distance From Tailgate

At Full Down
At Normal Tow Position

61
64 3/4

Cross Bar Spread

Full Retracted
Full Extension

60 3/8
90 5/8

Maximum Hydraulic Extension

31 1/4

Lift rating
Tow rating
Chassis Frame cut-off
Approx. Weight

4,000 lbs. (extended)
7,500 lbs.
35" cut off
2200 lbs.

Back to Top

CENTURY MODEL 211 - CHASSIS RECOMMENDATIONS

Century Model 211 should be installed on a chassis with minimum GVW of 10,000 lbs., dual rear wheels and a
minimum C.A. of 60". A heavy-duty spring package is recommended. Requires a manual transmission and at
least one accessible PTO opening or optional clutch pump for automatic transmission.

Note: Specifications subject to change without notice. All ratings specified are based on structural factors only,
not vehicle capacities or capabilities.
